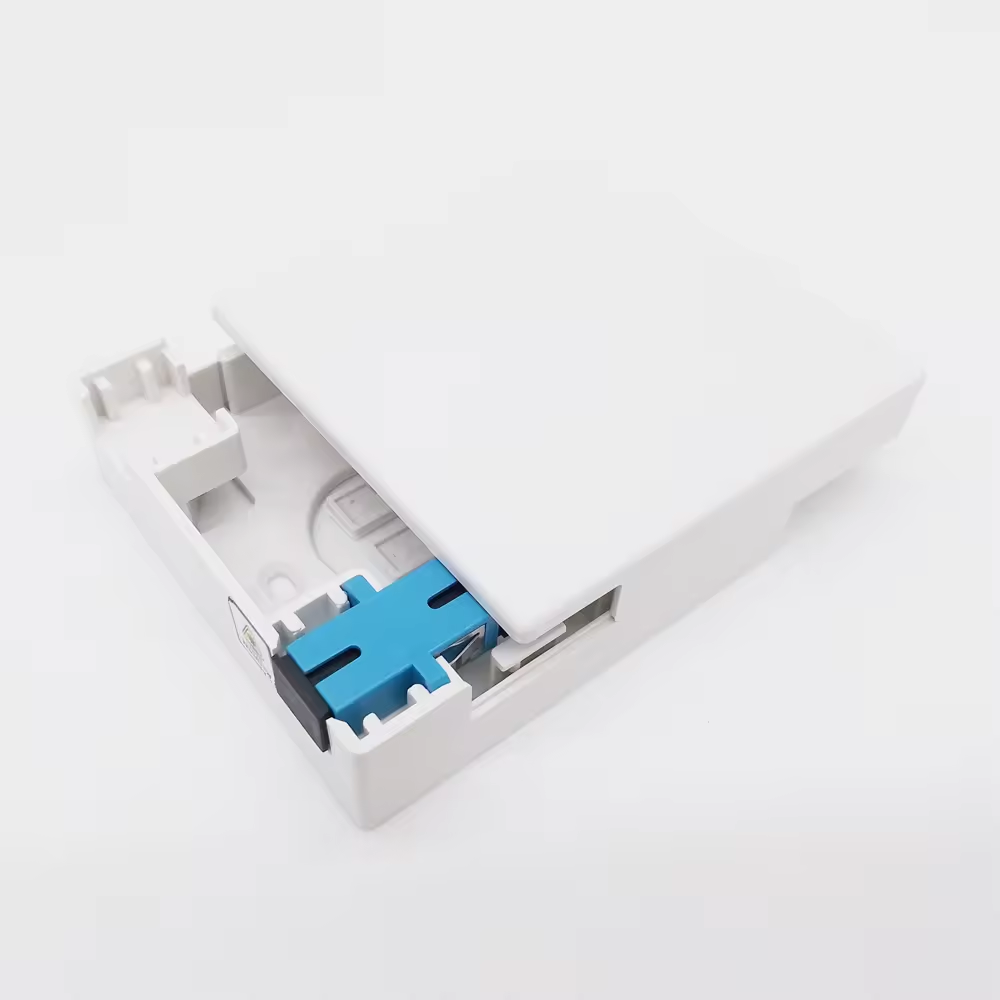

ABS Face Plate Fiber Optic Termination Box with 2 Core SC Adapters and Pigtails

Name: ABS Face Plate Fiber Optic Termination Box with 2 Core SC Adapters and Pigtails
Brand: Fongko
Price: 1 USD

Wholesale ABS Face Plate Fiber Optic Termination Box with 2 Core SC Adapters and Pigtails from china suppliers

Brand Name : Fongko

Model Number : FKWBO-005

Certification : SGS

Place of Origin : Shenzhen

MOQ : 1 pc

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 500 pcs per 1 day

Delivery Time : 3-7 days

Product name : Fiber Optic Terminal Box

Type : FTTx Solutions

Material : ABS

Cable in/out : 1/4 for FTTH Drop Cables

Single Weight/kg : 2kg

Ports : 2 cores

Mounting method : Wall mounting

Size : 210*140*40mm

Cable Diameter : 7mm~10mm

Contact Now

FONGKO Wall Mounted 86 Type 2 Port FTTH Fiber Optic Information Face Plate Panel Fiber Optic Terminal Box

Wall mini fiber optic termination box is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC duplex type. The termination box is used for wall mounted or desktop appliances. Made of the plastic material, is easy to install in home ore office. Outlets are designed to fit SC fiber optic cable patch cord adapter, used in work location subsystem.

Specification

a.High impact plastic, standard user interface
b.Suitable for 1x4 PLC splitter
c .Anti-UV,shocking resistance
d.Wall mount
e.Unique middle panel≥180°,clear area for splicing and distribution, less cross- connection for cables
1. IP-54 protection level for indoor use.

Technical data

Fiber bendradius:≥40mm
Splicetrayexcessloss:≤0.01dB
TemperatureRange:-40℃-+ 60℃
Anti lateral pressure:≥2000N /10cm
Shock resistance:≥20N.

Model	FKWBO-005
Dimension	86mm86mm27mm
Max capacity	2 SC Simplex Port
Color	white
N.w.	80g
Fiber connector insertion loss	<0.3dB
Fiber connector returen loss	UPC≥50dB,APC≥60dB,
Material	ABS
