1x8 PLC Splitter FTTH Fiber Optic Terminal Box 8 Cores With SC Shutter Adapter

Brand Name : Fongko

Model Number : FKTER-008

Certification : Rohs, SGS, ISO

Place of Origin : Shenzhen,Guangdong,China

MOQ : 100

Price : Negotiatable

Payment Terms : L/C, T/T

Product Name : FTTH Indoor Terminal Box

Material : PC+ABS

Mounting method : Mounting method: Wall mounting

Max Capacity : 8Cores

Size : 192*133*47mm

Splitter : 1x4, 1x8 PLC splitter

Adapter : SC Simplex

Contact Now

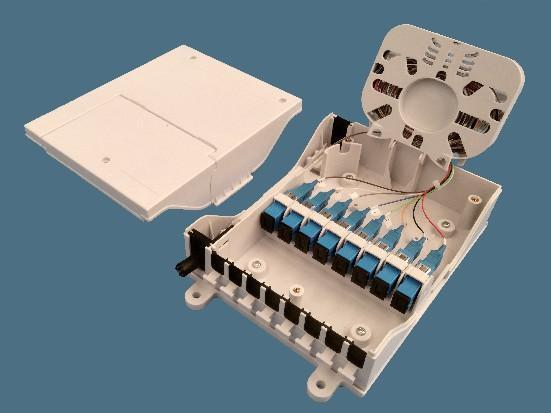

Indoor 8 Cores Fiber Optic Terminal Box WIth 1*8 PLC Splitter 8 Drop Cable Ports Rossette

This 8 core fiber optic terminal box integrates the function of splicing with splitting, suitable for the straight through or branch connection,and terminal connection in optical system,as well as protection connection for cables and distribution pigtails. The cables can be spliced with indoor cables by splitting,to meet the requirement of traditional network.

1x8 PLC Splitter FTTH Fiber Optic Terminal Box 8 Cores With SC Shutter Adapter

Features

a.High impact plastic, standard user interface

b.Suitable for 1x4, 1x8 PLC splitter
c .Anti-UV,shocking resistance
d.Unique middle panel≥180° ,clear area for splicing and distribution, less cross- connection for cables
Techinical data
Fiber bend radius:≥40 mm
Splice tray excess loss:≤0.01 dB
 Temperature Range:-40℃ + 60℃
 Anti lateral pressure:≥2000 N/ 10 cm
Shock resistance:≥20 N.m
Model FKTER-008

Dimension

(mm)W×D×H

 192*133*47

Outer carton

(mm)W×D×H

 480*470*520
Material ABS/PC Product Net weight(Kg) 0.3

Cable diameter (mm)

 ≤ F12 G .W ( K g)/carton 19 .5
Cable in/out: 4/8 Quantity/carton 60
Max splice 8 Volume (M3)/carton 0. 117

1x8 PLC Splitter FTTH Fiber Optic Terminal Box 8 Cores With SC Shutter Adapter
