8 Core FTTH Fiber Distribution Box , 8 Ports FTTH Termination Box

8 Core FTTH Fiber Distribution Box Ports Termination Box

1.Description

FK58-F series optical cable terminal box is used for loop terminal optical fiber distribution, with the functions of fiber
splicing, terminal and distribution. The input is for ordinary optical cable, and output for Pre-assembled single core FTTH drop cable.

2.Features

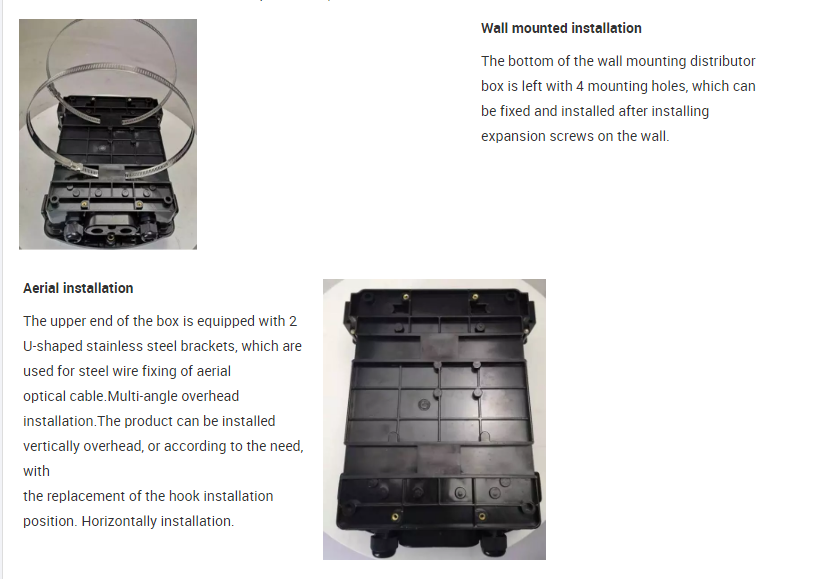

Different installation version supported
1. Pole installation
2. Wall mounted installation
3. Aerial installation
4. It can be equipped with optical fiber storage frame according to request.
The bottom of the pole mounting box is equipped with two hoop mounting grooves, which is easy to install with the pole, stable and
reliable.

3.Parameters

Fiber optic connector durability: > 1000 times.
Fiber optic connector IL: <0.3dB
Which includes IL and interchangeability, repeatability, temperature change and other additional losses, in which the IL is not more than 0.2dB.
Return loss
UPC connector ≥50dB
APC connector ≥60dB
Max. Capacity: 18 Fibers
Protection Level: IP66
Material: ABS+PC.
Dimension: 293*221*136mm
Weight (include accessories) 1.5kgs
It meets the direct fusion of 16 fiber optic cables,
